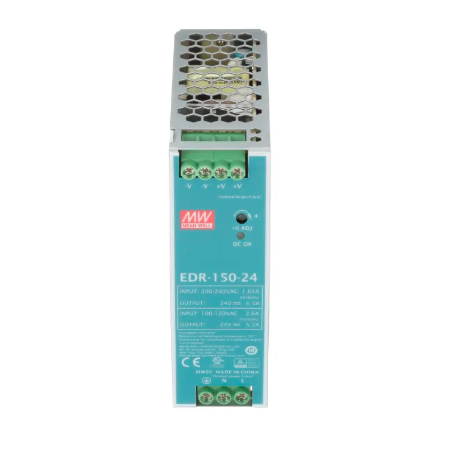

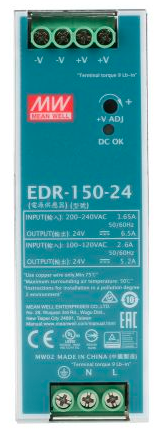

The Mean Well EDR-150-24 is an economical and ultra-reliable 156W single-output DIN rail power supply designed for heavy-duty industrial automation applications. Delivering a stable 24V DC output at up to 6.5A, it features a slim metallic housing (40mm width) that saves valuable space on TS-35 mounting rails inside control cabinets. Built to international industrial standards, it ensures maximum efficiency, low ripple noise, and long-term operating stability.

Key Features

• High Efficiency & Slim Design: Compact 40mm metal chassis design with up to 87% operating efficiency to save panel space.

• Universal AC Input: Accepts a wide range of input voltage from 90V to 264VAC (47–63Hz), making it compatible with global grid standards.

• Adjustable DC Voltage: Front-panel potentiometer allows output voltage adjustment from 24V to 28V DC for precise tuning.

• Comprehensive Protections: Built-in safeguards against Short Circuit, Overload, Overvoltage, and Over-temperature (auto-recovery).

• Industrial Compliance: EN61000-6-2 immunity level certified for demanding industrial environments.

• Passive Cooling: Free air convection cooling system with high reliability across working temperatures ranging from -20°C to +60°C.
